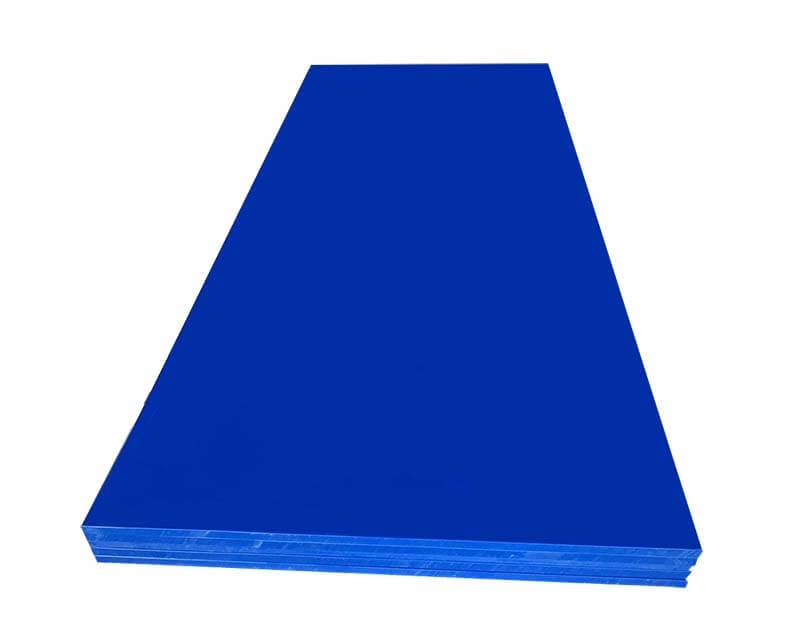

UHMW Liner
Product Properties
- High abrasion and wear resistance
- High impact strength
- Low coefficient of friction
- Self-lubricating
- Very good noise absorption
- Chemical and corrosion resistant
- Moisture resistant
- Non-toxic / Non-hazardous
- Stress crack resistant
- Easily machined
We Bring One-Stop Solutions for Your UHMW Liner Demand
Yasu offers custom lining solutions to suit your individual application make the handling of parcels safer, faster, easier, and more efficient.
>> Size: As the most professional supplier in China, we have the most mold sizes for our customers to choose from. The maximum size is 2M*6M. And we can provide high-quality cutting services to meet the specific needs of different customers for sizes.
>> Thickness: According to different thickness requirements, YASU produces the UHMW liner with a thickness of 8mm (Min) and 200mm(Max).
>> Color: There is a wide range of standard colors available and colors can be customized according to RAL or Pantone color card.
>> Formulation: UHMW is a high-performance, versatile polymer that can be designed and formulated to meet your industrial needs.
Contact Us
*We respect your confidentiality and all information are protected.
Kindly please check the size and grade we made as below. Customize formulation and size is also available upon request.
| Standard Size (mm) | Thickness (mm) |
|---|---|
|
1000 × 2000 |
8-200 |
|
1020 × 4080 |
8-200 |
|
1220 × 2440 |
8-200 |
|
1240 × 3700 |
8-200 |
|
1250 × 3050 |
8-200 |
|
1260 × 2050 |
8-200 |
|
1300 × 6000 |
10-200 |
|
1500 × 3000 |
8-200 |
|
1545 × 6070 |
8-200 |
|
2000 × 4000 |
8-200 |
|
2000 × 5000 |
10-200 |
|
2100 × 6000 |
10-200 |
* The sizes are shown here represent our current range, customized production is possible according to requirements.
| Grade | Description | Standard Colour |
|---|---|---|
|
Virgin |
Standard UHMW-PE |
Natural / Black / Green / Colours |
|
Anti-Static |
Reduces static build-up, 10^6–10^11 ohms/sq surface resistivity |
Black |
|
Reprocessed |
Eco-friendly and economical benefit |
Black |
|
UV-Stabilized |
Formulation for outdoor application |
Black |
|
Flame Retardant |
Flame retardant and self-extinguishing |
Black |
|
Borated UHMW-PE |
Boron loaded for neutron shielding purposes |
Black |
|
Marine Grade |
Low friction, excellent impact strength, and good wear resistance |
Black / Yellow / Blue / Colours |
|
Lining Grade |
Ideal material for the bulk material handling and mining industry |
Black / Blue / Grey / Natural |
|
Tech |
MoS2 added for improving wear resistance and sliding properties |
Grey-black |
|
Oil Filled |
Reduced coefficient of friction |
Grey |
|
Glass Filled |
Superior wear resistance and dimensional stability |
Blue |
|
Metal Detectable |
Metal detectable for food processing |
Blue |
|
Rubber Backed |
Rubber backing allows the use of adhesives |
– |
Serving a Wide Range of Applications

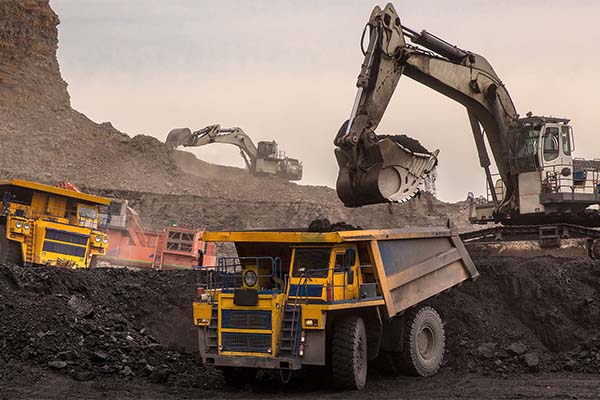

UHMW liner is used in a wide variety of industries that handle bulk materials from the mining level up to and including the final processing or use of the product. Some applications are as below:
- Shovel Liners
- Hopper Liners
- Chute Liners
- Dragline Bucket Liners
- Truck Bed Liners
- Silos, Bins, Bunkers
- Truck Dump Hoppers
- Rail Dump Hoppers
- Batch Hoppers
- Screw Conveyors
- Stacker/Reclaimer Bucket Liners
- Gravel Trains Liners
- Scrapers
Samples of Our Work
Kindly please check the samples as below. And if you have any specific demand, welcome to contact our expert to design your own solution of UHMW liner.
Full service
As a system provider for engineering plastics, we accompany you throughout the entire design and production process.
We provide CAD drawing services on a wide range of materials. No matter what you need a CAD drawing of, we can help you. We have a team of experienced professionals who work with a variety of CAD software and a wide range of materials to create any type of drawing for any project.
Complete fabrication facilities to cut or machine parts for custom applications.
We have specialized in the manufacture of high-quality CNC machined components made of plastic for the virtual industry. We have modern, high-performance CNC machining centers that offer the possibility of producing complex, very small, and large parts made of plastic for your application.
We have established a strict quality control process and a team of QC to ensure that each product is 100% consistent in mass production, and orders are 100% traceable through YASU. In addition, we have been committed to continuous improvement.
Packaging is an integral part of the process of shipping goods. It is important to keep in mind how your product will be packaged in order to protect it during the shipping process.
YASU specializes in customizing packaging for businesses that need to ship to other countries.
With the logistics of professional logistics service company, we will take care of your cargo and get it to its destination with safety and high efficiency at an affordable price.
