Fiberglass Channel
Product Properties
- Corrosion Resistance
- High Strength-to-Weight
- Dimensional Stability
- Easy Installation
- Cost Effective
- Lightweight
- Easy to Field Fabricate
- Virtually Maintenance Free
- Durability & Weatherability
- Low in Thermal and Electrical Conductivity
- Different Flame Retardant Grades Available
- Any Transportable Length is Available
We Bring One-Stop Solutions for Your Fiberglass Channel Demand
The pultrusion technology allows us a great deal of construction flexibility. Your fiberglass channel can be customized to your individual application.
>> Shape: In addition to a wide range of standard fiberglass channels, Yasu also offers customized designs tailored to your requirements.
>> Thickness & Length: YASU can manufacture thinwalled profiles with wall thicknesses under 2.2mm. Parts can also be as thick as 50.0 mm or more. And there is no limit to the length of the fiberglass channel products, any length that can be transported is available.
>> Color: Yasu offers color matching capabilities for resins, finished pultrusions, and topcoats.
>> Resin Matrix: Standard resin systems can be modified or special resins used to address such needs as elevated temperatures or special environments. Typical resins include polyesters, vinyl esters, epoxies, phenolics, urethanes, and blends.
>> Production Capability: More than 20 pultrusion machines, 6 SMC hydraulic machines, and the ability to expand quickly assure manufacturing flexibility.
Contact Us
*We respect your confidentiality and all information are protected.
Available List

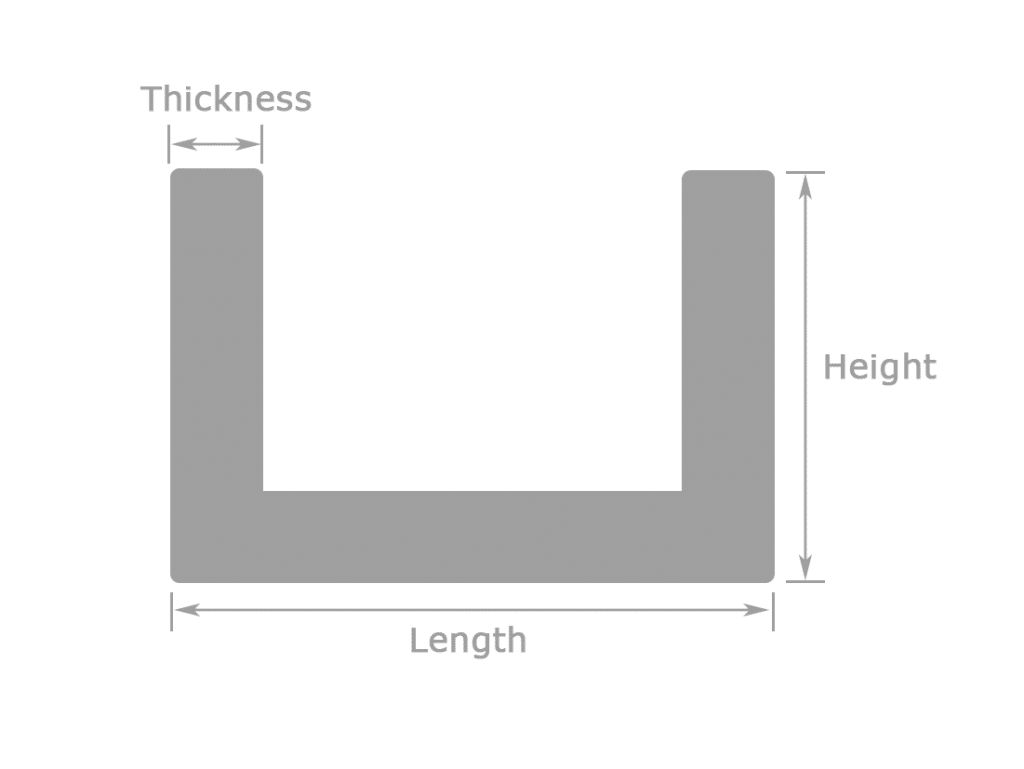

| Model | Length | Height | Thickness |
|---|---|---|---|
|
C50A |
50mm |
25mm |
5mm |
|
C50B |
50mm |
50mm |
5mm |
|
C60 |
60mm |
50mm |
5mm |
|
C100A |
100mm |
40mm |
5.5mm |
|
C100B |
100mm |
50mm |
7.5mm |
|
C133 |
133mm |
20mm |
3mm |
|
C150 |
150mm |
40mm |
5mm |
|
C152 |
152mm |
50mm |
8mm |
|
C127 |
127mm |
185mm |
3mm |
|
C203 |
203mm |
56mm |
9.5mm |
|
C254 |
254mm |
70mm |
12.7mm |
|
Custom Option |
Customizable |
Customizable |
Customizable |
* The sizes are shown here represent our current range, customized production is possible according to requirements.
Serving a Wide Range of Applications
Fiberglass channel is an ideal solution for floor joists in applications where corrosion is an issue and where lightweight structural shapes are needed for easy installation. Some applications are as below:
- Architectural
- Building / Construction
- Cellular
- Coastal / Marine
- Electric Utility
- Hotel / Motel
- Industrial
- Transportation
- Water / Wastewater
- Infrastructure
- Platform
- Mining
- Oil & Gas
- Parks & Recreation
- Pulp & Paper
Samples of Our Work
Kindly please check the samples as below. And if you have any specific demand, welcome to contact our expert to design your own solution of fiberglass channel.
Full service
As a system provider for engineering plastics, we accompany you throughout the entire design and production process.
We provide CAD drawing services on a wide range of materials. No matter what you need a CAD drawing of, we can help you. We have a team of experienced professionals who work with a variety of CAD software and a wide range of materials to create any type of drawing for any project.
In the development and design of your special-shaped pultruded profile according to your individual specifications, our experienced engineers and toolmakers will be happy to advise you so as to achieve an optimum functional result for your application. Our own tool shop matching of your tool to the respective pultrusion profile.
Complete fabrication facilities to cut or machine parts for custom applications.
We have specialized in the manufacture of high-quality CNC machined components made of plastic for the virtual industry. We have modern, high-performance CNC machining centers that offer the possibility of producing complex, very small, and large parts made of plastic for your application.
We have established a strict quality control process and a team of QC to ensure that each product is 100% consistent in mass production, and orders are 100% traceable through YASU. In addition, we have been committed to continuous improvement.
Packaging is an integral part of the process of shipping goods. It is important to keep in mind how your product will be packaged in order to protect it during the shipping process.
YASU specializes in customizing packaging for businesses that need to ship to other countries.
With the logistics of professional logistics service company, we will take care of your cargo and get it to its destination with safety and high efficiency at an affordable price.
Stock Shapes
Regular sheet, rods, tubes and profiles on stock to support the fast delivery and ultimate convenience for you.
Custom Fabrication
Various processing techniques are ready to achieve your specifications. We will offer the best way to suit your part details, tolerances, quantities.
Low Minimum Order
All of our products are available with Low minimum order quantity, no hidden setup charges and fast lead times.
